The medical air purifier uses an air filtration system to continuously purify the air in the external space through the air inlet and filter net and air purification filter, and then put it back into the air to achieve the effect of keeping the air clean in the space. The cleanliness of the air outlet of the clean screen can reach class 100. It is a medical-grade air purifier that can be used in the medical system.
Competitive Advantage:
. Medical grade HEPA filter combined with short-wave ultraviolet light
. Removal of 100% white Staphylococcus and Aspergillus niger PM0.5
. Removal of 100% particles. Atmospheric velocity 5000 m3 / h (2941 CFM)
. Applicable room volume 250 cubic meters / 3531 generation At 20 ACH
. Low noise, max. 60 dB, operating power, lower max 420 w
. 30850μw/cm2 ultraviolet radiation intensity
. Human and machine coexist, no harm to human health
. Easy to move, more effective than laminar flow or HVAC system HEPA
Specifications
| Technical parameters of MKJ4000-S2 |
| CADR | 1706.4m3/h |
| Klebsiella pneumoniae sterilization rate | 100% |
| Aspergillus Niger sterilization rate | 100% |
| Sterilization rate of Staphylococcus albus | 100% |
| Natural bacteria death rate | 99.77% |
| H3N2 influenza virus killing rate | 99.99% |
| Purification rate of PM0.5 for one pass | 100% (on-site inspection) |
| UV leakage intensity (at 30cm around the device) | 0μw/cm2 |
| Ozone concentration (5cm from the air outlet) | 0.026mg/m3 |
| Ultraviolet radiation intensity (at 1cm) | 30850μw/cm2 |
| Dimensions (L×W×H) | 700×400×1576mm |
| Input power | Max 280W, 3 levels |
| Noise | Max 60dB (A), 3 levels |
| Product N. W | 89kg |
| Product G. W | 103kg |
| Voltage and Frequency | 220V/50Hz |
| Classification of Environment | MKJ4000-S2 |
| Environment Class I (Indoor ACH≥50 times/h) | ≤40 m3 |
| Environment Class II (Indoor ACH≥20 times/h) | ≤100 m3 |
| Environment Class III (Indoor ACH≥10 times/h) | ≤200 m3 |
| Eliminating rates | MKJ4000-S2 |
Eliminating rate of Klebsiella pneumoniae (1h, 30m3 Experimental chamber), % | 100% |
Eliminating rate of Aspergillus Niger (1h, 30m3 Experimental chamber), % | 100% |
Eliminating rate of Staphylococcus Albus (1h, 30m3 Experimental chamber), % | 100% |
Extinction rate of natural bacteria (1h, 60m3 Experimental chamber), % | 99.77% |
Eliminating rate of H3N2 virus (20min, 10m3 Experimental chamber), % | 99.99% |
Applications
| Main applications | Respiratory unit, ICU, Emergency unit, Transplantation unit, CT room, Fever clinic unit, Blood wards, Burn wards, Neonatal rooms |
| Environment Class I | Laminar flow operation room/ward |
| Environment Class II | ICU/Hematological/Burn/Bone Marrow Transplant/Obstetric and Gynecologic/Catheter/Neonatal/Organ Transplant room/ward |
| Environment Class III | General/Pediatric/Rooming-in/Gynecologic examination/Treatment/Injection/Dressing/Blood Transfusion/Hemodialysis center/Emergency/Laboratory/Infectious Diseases room/ward |
| Public places | The bank, Kindergarten, Movie theaters, fitness halls, clubs, massage rooms, bars, cafes etc |
| Home care | Care home such as Asthma, Rhinitis, Dust mites, and Pollen allergies populations/ People with weakened immunity such as major postoperative, hemopathy, Chemoradiotherapy patient/ People suffering from respiratory diseases (Asthma, COPD)/ People with allergies (Pollen allergy, allergic rhinitis, allergic dermatitis)/ Gestational woman, children, the aged etc |
Medical Grade Air Purifier Suitable for people who are sick, weak in resistance, and sensitive to air.

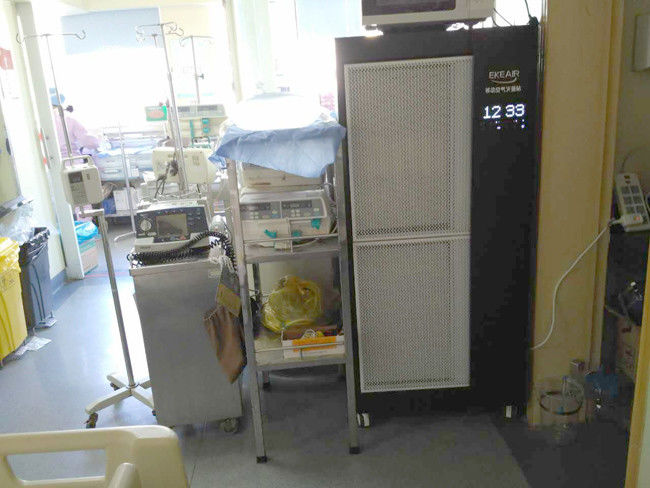

Hospitals units such as Respiratory, Critical Care, Transplantation, Blood, CT, Emergency, Endoscopy, Fever Clinic, Burns Department, Neonatal Rooms.
Schools such as Kindergartens, Elementary schools, High schools.
Public places such as The Prisons, The troops, The Banks, Homes
Using alpha-pure system alpha clean control system, 100% isolation of extremely fine particles is achieved through the polar body HEPA filter membrane, gaseous pollutants are effectively removed through molecular sieve technology, and the precise airflow distribution of fluid power is achieved through high-energy photoions. Fast sterilization.
. α-Pure System technology
· Remove 100% of white staphylococcus
· Remove 100% of particles PM0.5
· Remove 99.99% of H3N2 viruses
· Medical grade HEPA filtration plus UVC lights
· Large CADR up to 1706.4 m3/h (1004 CFM)
· Applicable room volume 100 m3 / 3531 ft3 at 20 ACH
· Low Noise with low operating power
· Strictly produced as per ISO standards
· No harm and safety to human health
· Easy to maintain and low cost comparing to Laminar flow
FAQ
Q: Are you a manufacturer or trading company?
A: Manufacturer.
Q: Where is the production base?
A: Tongxiang City of Zhejiang Province. Marketing center located in Xuhui District of Shanghai.
Q: What cooperation mode we could consider?
A: OBM service. We are seeking for a strategic agent or distributors in each country.
Q: What’s your main products?
A:We are dedicated to three series and five products, which are Ekeair air sterilizer MKJ4000-S1, MKJ4000-S2, MKJ4000-S4, Ekeair air sterilizer MKJ-A1, Ekeair air quality monitor SC01.
Q: What is your sole agent policy?
A: An exclusivity agreement would be considered in order to specify trial order number, first and following stage of purchase number, marketing period, sales training before marketing etc.
Q: What is your distribution policy?
A: A distribution agreement would be considered in order to specify trial order number and other conditions.
Q: What about applications?
A: Ekeair air sterilization is suitable for those with high requirements for air quality, such as inpatient, fever clinic, CT room, Respiratory room etc. Ekeair has played an important role in helping with fighting against Covid-19’s bioaerosol.
OBM services:
- Design, Research & Development, Production of Ekeair brand air sterilization
- Training of sales, technical, aftersales to agents or distributors in each region.
- Supports of product marketing to agents or distributors in each region.
- Supports of aftersales to agents or distributors in each region.
